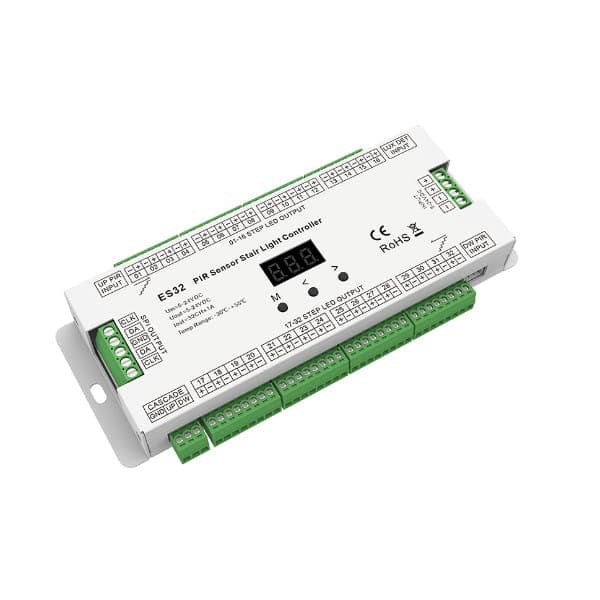

Multifunctional PIR sensor stair light controller features daylight sensor.
● 32 channels constant voltage output drive low voltage LED strip, Max. 1A current per channel.
● 2 groups same SPI(TTL) signal output, drive 28 kinds IC digital RGB LED strip, IC type and R/G/B order can be set. Compatible ICs: TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, UCS2903, UCS2909, UCS2912, WS2811, WS2812, TM1829, TM1914A, GW6205, GS8206,GS8208,LPD6803, LPD1101, D705, UCS6909, UCS6912, LPD8803, LPD8806, WS2801, WS2803, P9813, SK9822, SM16703P.
● Easy operation with OLED display and 3 buttons. ● four work light modes selectable.
● Two stair light controllers can cascade.
● Built-in multiple color mode, speed and brightness 1-8 grade adjustable.
● Push switch can be used as induction signal input.
● With fast self-testing function.
● Any damaged LED channel in 32 channels can be set disable.
● Can match with IR reflection induction probe (Standard) or when need accurate sensing area, can match with IR reflection induction set ES-T.
SKY Stair Lighting Controller
$201.50
- Radio Frequency Communication System.
- Works with any 12 or 24 VDC power supply.
- Pair it up with any LED RGB strips, or LED RGB Low Voltage thin wall washers.
- 3 Channels (RED, GREEN & BLUE).
- Maximum current: 12A (4A per Channel).
- Rated Power: 144W/12V , 288W/24V.
- Hand held remote not included included.
- Works on the 433.92 Mhz RF band.
- Receiving device can be sync to a maximum of 10 hand held remotes.
- Hand held remote can be synced to unlimited receiving devices of the same model.
Only 2 left in stock
SKU: ECTSK-ST32C1ACategories: CONTROLLERS, ENTERTAINMENT, STAIR LIGHTING CONTROL
Description
Specifications
Electrical Information
Dimmable
This unit includes dimming function
Input Voltage
12/24VDC
Recommended Power Limit
384W/12V, 768W/24V
Output Voltage
12/24VDC, Same as Input voltage
Current Per Channel
1A
General Characteristics
Length
7.33"
Width
3.4"
Height
1"
IP Rating
IP20
Warranty
2 Years
Finish
White
Brand
SKYDANCE
Installation Related Information
Connection
Screw Terminal Block Connector
Mounting Type
Screw-Ready Brackets on Edges
Control Unit Information
Channels
32 Channels
Certifications
CE Compliance
Yes
Rohs Compliance
Yes
