Radio frequency controllers are a flawless, innovative way to transform your CCT LED strips to a mood-setting device which enhances style of any room in your home or business. As with our other products, we have added the ease and comfort of a remote control which permits incredible accuracy of approximately 30 meters. Differently to the infrared system, there is no need to aim at the receiver. The advantage of this controller is that it allows you to change the color temperature, meaning the white tone of the light, thus, the mood of the space. The color temperature could be changed from 2700/3000K (warm white), to 5000K-6000K (cool white/daylight), this is dependent on the CCT the system it would be paired to.

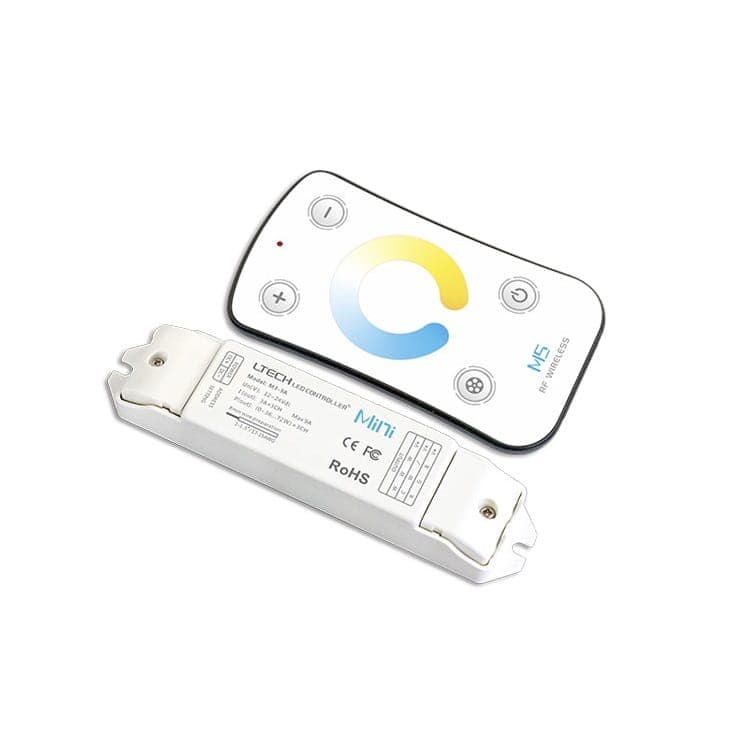

CCT Radio Frequency Controller with Sync Function, 6A, M5 series
$38.50
- Radio Frequency Communication System.
- Works with any 12 or 24 VDC power supply.
- Pair it up with any LED CCT strips.
- 2 Pair of Channels (2 WW channels, 2 CW channels)
- Maximum current: 20A (5A per Channel).
- Rated Power: 240W/12V , 480W/24V.
- Hand held remote included.
- Works on the 433.92 Mhz RF band.
- Receiving device can be sync to a maximum of 10 hand held remotes.
- Hand held remote can be synced to unlimited receiving devices of the same model.
- Allows the user to control the color temperature of a CCT LED Strip.
Only 3 left in stock
Specifications
Electrical Information
Dimmable
By Remote Controller
Input Voltage
12/24VDC
Recommended Power Limit
CCT: 240W/12V, 480W/24V
Output Voltage
12/24VDC, Same as Input voltage
Current Per Channel
5A
General Characteristics
Length
8"
Width
5"
Height
2"
IP Rating
IP20
Finish
White
Brand
LTECH
Installation Related Information
Connection
Screw Terminal Block Connector
Mounting Type
Screw-Ready Brackets on Edges
Control Unit Information
Remote Controller
Included
Channels
2 Pair of Channel (2 WW, 2 CW)
Controllable By
RF Remote Controller (Included)
Control Distance
30 Meters, 100 feet
Certifications
CE Compliance
Yes
Rohs Compliance
Yes
UL Recognized
No
