Wifi controllers are a flawless, innovative way to transform your RGB LED strips to a mood-setting device which enhances style and color to any room in your home or business. In some occasions, the total load of the system surpasses the rated output power of the low voltage controller, and this is the moment when the amplifiers comes into play. An Amplifier increases the power of the system so that it provides enough power needed by the LEDs to work properly while repeating the commands of the main controller, so the system can work smoothly.

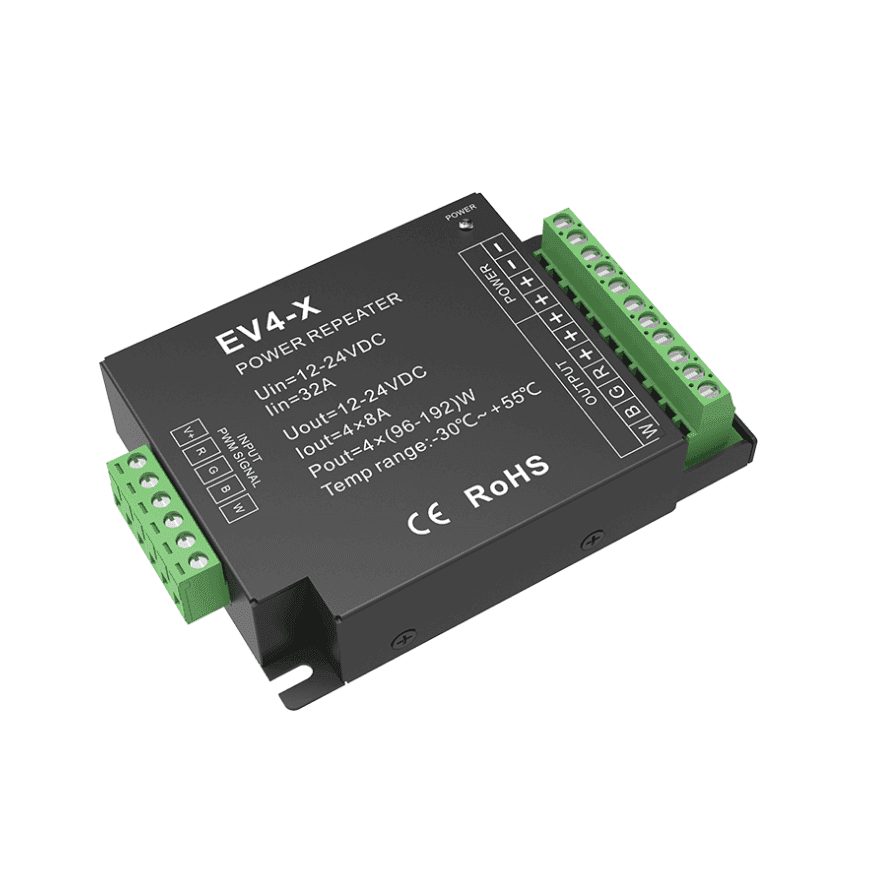

12/24V Amplifier, 4 Channels for DIM/CCT/RGB/RGBW Strips, 8A
$29.75
- Works with any 12 or 24 VDC power supply, and controller.
- Pair it up with any controller (up to 4 channels controllers) to increase power output of the system.
- Maximum current: 32A (8 per Channel).
- DIM (Single Color) Rated Power: 384W/12V , 786W/24V.
- CCT Rated Power: 384W/12V , 786W/24V.
- RGB Rated Power: 288W/12V , 576W/24V.
- RGBW Rated Power: 384W/12V , 786W/24V.
Related linear lighting components frequently needed:
LED Strips
Wet Rated LED Strips
Power Supplies
Aluminum Channels
In stock
Specifications
Electrical Information
Dimmable
Yes, using a 12V or 24V Voltage Controller
Input Voltage
12/24VDC
Recommended Power Limit
DIM: 240W/12V, 480W/24V || RGB: 180W/12V, 360W/24V || RGBW: 240W/12V, 480W/24V
Output Voltage
12/24VDC, Same as Input voltage
Current Per Channel
8A
General Characteristics
Length
8"
Width
5"
Height
2"
IP Rating
IP20
Warranty
2 Years
Finish
White
Installation Related Information
Connection
Screw Terminal Block Connector
Mounting Type
Screw-Ready Brackets on Edges
Control Unit Information
Channels
3 Channels (RGB), 4 Channels (RGBW)
Controllable By
12V or 24V Voltage Controller
Certifications
CE Compliance
Yes
Rohs Compliance
Yes
