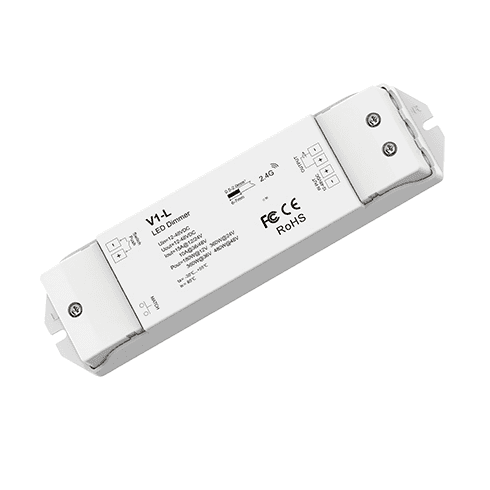

SKY RF Dimmer Receiver, 1 Channel 15A, 12V 180W / 24V 360W
- Free shipping on orders $200+
- Free store pickup · Hialeah, FL
- Same-day shipping on stock items
- Radio Frequency Communication System.
- Works with any 12 or 24 VDC power supply.
- Pair it up with any LED RGB strips, or LED RGB Low Voltage thin wall washers.
- 3 Channels (RED, GREEN & BLUE).
- Maximum current: 12A (4A per Channel).
- Rated Power: 144W/12V , 288W/24V.
- Hand held remote not included included.
- Works on the 433.92 Mhz RF band.
- Receiving device can be sync to a maximum of 10 hand held remotes.
- Hand held remote can be synced to unlimited receiving devices of the same model.
Guaranteed Safe Checkout
Description
- Radio Frequency Communication System.
- Works with any 12 or 24 VDC power supply.
- Pair it up with any LED RGB strips, or LED RGB Low Voltage thin wall washers.
- 3 Channels (RED, GREEN & BLUE).
- Maximum current: 12A (4A per Channel).
- Rated Power: 144W/12V , 288W/24V.
- Hand held remote not included included.
- Works on the 433.92 Mhz RF band.
- Receiving device can be sync to a maximum of 10 hand held remotes.
- Hand held remote can be synced to unlimited receiving devices of the same model.
Specifications
Physical Characteristics
Length8 in
Width5 in
Electrical Characteristics
Input Voltage12/24VDC
Output Voltage12/24VDC / Same as Input voltage
Rated Current15A
Recommended Power Limit180W/12V , 360W/24V.
Current Per Channel4A
Input ConnectorBlock Terminals
Control & Compatibility
Remote ControllerNo Included, Sold Separately
Controllable ByRemote Control (not Included)
DimmableBy Remote Controller
Control Distance30 Meters, 100 feet
Certifications & Ratings
Warranty2 Years
General Information
FinishWhite
ConnectionScrew Terminal Block Connector
Height2 in
Mounting TypeScrew-Ready Brackets on Edges
BrandSKYDANCE
Channels1 Channel
Number of Outputs1
Output ConnectorBlock Terminals
