This advance DMX decoder occupied 4 DMX address, adopt coding switch is setting DMX original address code from 1 to 9, 1 is the lowest, and 9 is the highest , 512 address code could be settled in all units. This DMX common decoder adopts the advanced micro control unit, receives standard DMX-512 digital control signal and transformed it into PWM signal to driving LED.

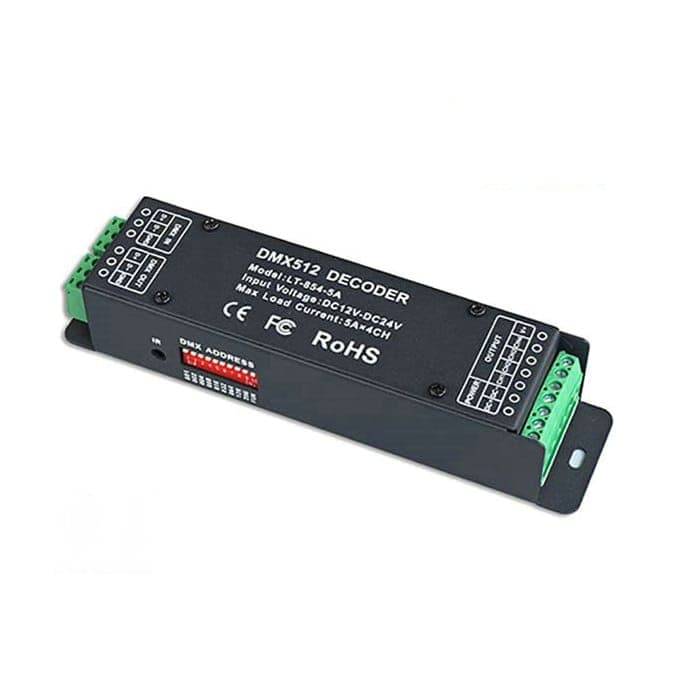

RGBW DMX Decoder, 5A per Channel, Block Terminal
$59.25
- DMX512 Communication System.
- Pair it up with any LED RGB strips, or RGB Low Voltage LED wall washers.
- It needs a 12/24VDC power supply to operate.
- 4 Channels (RED, GREEN, BLUE & WHITE)
- Maximum current: 20A (5A per Channel)
- Rated Power: 240W/12V, 480W/24V.
- Block Terminal Connection.
Only 2 left in stock
SKU: ECTL-DM4C5A-BTCategories: CONTROLLERS, DMX, ENTERTAINMENT
Specifications
Electrical Information
Dimmable
By DMX Control
Input Voltage
12/24VDC
Recommended Power Limit
240W/12VDC, 480W/24VDC
Output Voltage
12/24VDC, Same as Input voltage
Current Per Channel
5A
General Characteristics
Length
8"
Width
5"
Height
2"
IP Rating
IP20
Warranty
2 Years
Finish
Black
Installation Related Information
Connection
Screw Terminal Block Connector
Mounting Type
Screw-Ready Brackets on Edges
Control Unit Information
Remote Controller
No Included, Sold Separately
Channels
4 Channels (RGBW)
Controllable By
DMX512 Controller
Certifications
CE Compliance
Yes
Rohs Compliance
Yes
