Wifi controllers are a flawless, innovative way to transform your RGB LED strips to a mood-setting device which enhances style and color to any room in your home or business. As with our other products, we have added the ease and comfort of a remote control which permits incredible accuracy of approximately 30 meters. Differently to the infrared system, there is no need to aim at the receiver.

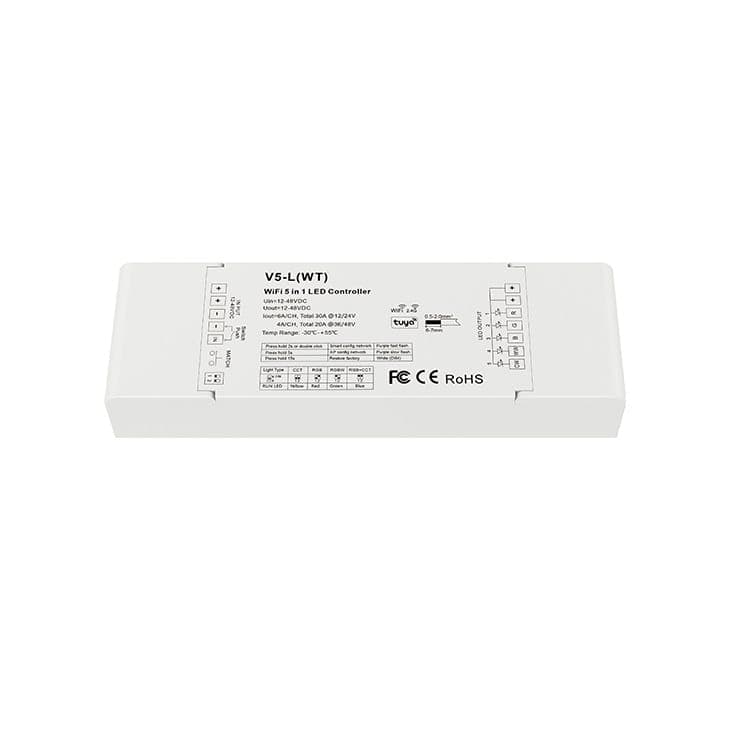

SKY WIFI For DIM/CCT/RGB/RGBW/RGBCCT Strips, 6A
$46.50
- 2-in-1 WIFI & Radio Frequency Communication System.
- Works with any 12 or 24 VDC power supply.
- Pair it up with any RGB low voltage units, RGBW low voltage units, and RGBCCT low voltage units.
- 5 Channels (RED, GREEN, BLUE, WARM WHITE, COOL WHITE).
- Maximum current: 30A (6 per Channel).
- DIM (Single Color) Rated Power: 360W/12V , 720W/24V.
- CCT Rated Power: 288W/12V , 576W/24V.
- RGB Rated Power: 216W/12V , 432W/24V.
- RGBW Rated Power: 288W/12V , 576W/24V.
- RGBCCT Rated Power: 360W/12V , 720W/24V.
- Compatible with SKY Hand held remotes not included.
- Works on the 433.92 Mhz RF band.
- Compatible with smart phone app name “TUYA”.
- Compatible with Alexa, and google home.
Related linear lighting components frequently needed:
LED Strips
Wet Rated LED Strips
Power Supplies
Aluminum Channels
In stock
Specifications
Electrical Information
Dimmable
By Remote Controller
Input Voltage
12/24VDC
Recommended Power Limit
RGB: 216W/12V, 432W/24V || RGBW: 288W/12V, 577W/24V || RGBCCT: 360W/12V, 720W/24V
Output Voltage
12/24VDC, Same as Input voltage
Current Per Channel
6A
General Characteristics
Length
8"
Width
5"
Height
2"
IP Rating
IP20
Warranty
2 Years
Finish
White
Brand
SKYDANCE
Installation Related Information
Connection
Screw Terminal Block Connector
Mounting Type
Screw-Ready Brackets on Edges
Control Unit Information
Remote Controller
No Included, Sold Separately
Channels
3 Channels (RGB), 4 Channels (RGBW), 5 Channels (RGBCCT)
Controllable By
APP "TUYA", Remote Control (not Included)
Control Distance
30 Meters, 100 feet
Compatible Mobile App(s)
TUYA
Certifications
CE Compliance
Yes
Rohs Compliance
Yes
RESOURCES
RESOURCES
WIFI & RF RECEIVER
COMPATIBLE REMOTE CONTROLLERS
Datasheet SKY DIM/Single Color Radio Frequency Remote Control with Sync Function, 4 Zones (SKU ECTSK-RM1C4Z)
Datasheet SKY RGB/RGBW Radio Frequency Remote Control with Sync Function (SKU ECTSK-RM3&4C1Z
Datasheet SKY RGB/RGBW Radio Frequency Remote Control with Sync Function, 4 Zones (SKU ECTSK-RM3&4C4Z)
