LED modules have been introduced successfully in the world of signs in recent years. The LED module provides better light distribution due to its versatility and surpasses energy efficiency by other technologies. The chips are excellent quality and its ability to radiate light is impressive and affordable. LED Modules are used for channel letters, display sets, pylon signs and more. All modules have passed the strict quality tests imposed by the UL certification.

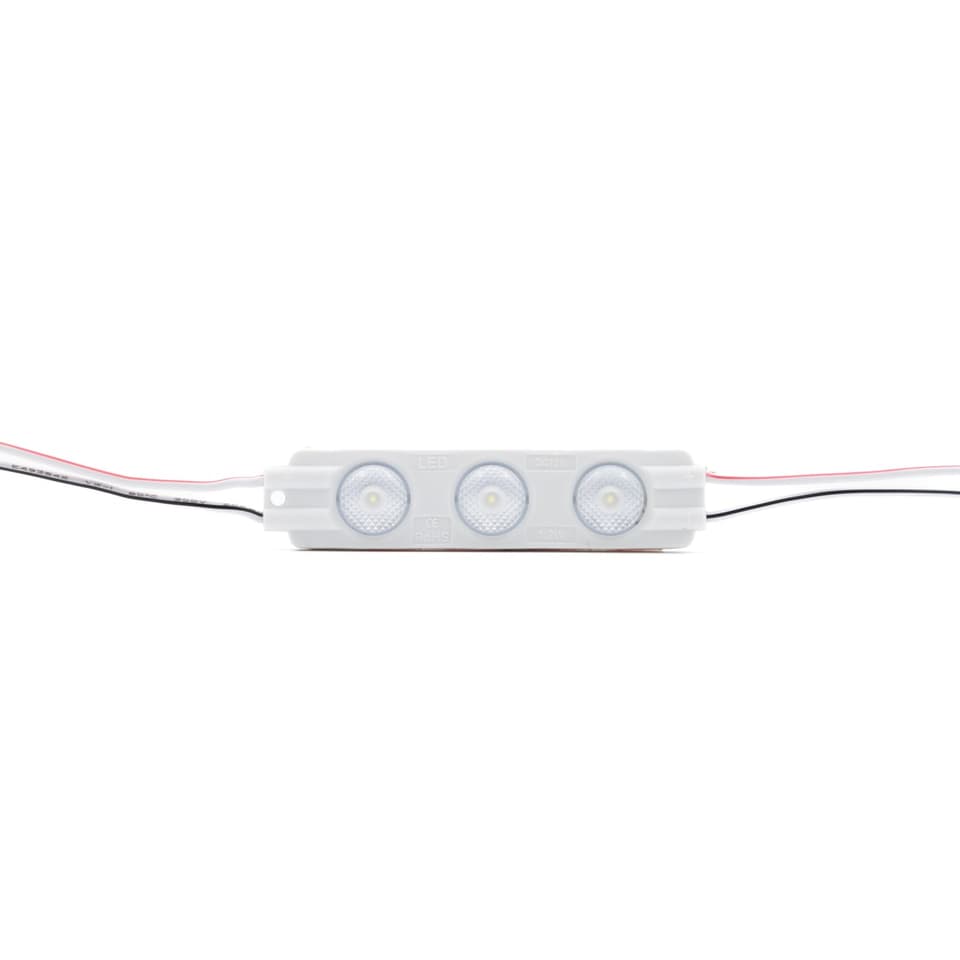

SMD2835 LED Linear Modules, 3 Chips, 7000K
$18.75
Color Options
- Perfect product for Signage Lighting, and other back lighting applications.
- Works with any 12VDC power supply.
- Energy efficient. High luminous flux.
- UL recognized.
- 7000K.
- 20 modules per unit / string.
- 1.2W per module.
Related linear lighting components frequently needed:
Power Supplies
Low Voltage Dimmers
In stock
Specifications
Electrical Information
Power Consumption
1.2W
Dimmable
Yes
Driver Type
Need DC12V Power Source
Input Voltage
12VDC
Lighting Characteristics
Color Options
7000K
Luminous Flux
115Lm per foot
Beam Angle
150°
Chip Type
SMD2835
Lighting Cover
Clear
CRI
>75
Life Span
50,000 Hrs
General Characteristics
Length
2 3/4" each module
Width
1/2" each module
Height
6/32" (module)
Finish
White
IP Rating
IP65
Modules Count
20 modules
Suitable For Damp Location
Yes
Suitable For Wet Location
Yes
Warranty
3 Years
Installation Related Information
Connection
DC wires
Mounting Type
3M adhesive Tape
Control Unit Information
Certifications
CE Compliance
Yes
Rohs Compliance
Yes
UL Recognized
Yes
