Radio frequency controllers are a flawless, innovative way to transform your RGB LED strips to a mood-setting device which enhances style and color to any room in your home or business. As with our other products, we have added the ease and comfort of a remote control which permits incredible accuracy of approximately 30 meters. Differently to the infrared system, there is no need to aim at the receiver.

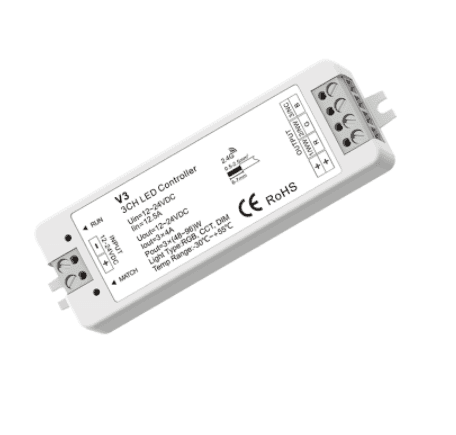

SKY RGB Radio Frequency Receiver with Sync Function, 12A
$18.99
- Radio Frequency Communication System.
- Works with any 12 or 24 VDC power supply.
- Pair it up with any LED RGB strips, or LED RGB Low Voltage thin wall washers.
- 3 Channels (RED, GREEN & BLUE).
- Maximum current: 12A (4A per Channel).
- Rated Power: 144W/12V , 288W/24V.
- Hand held remote not included included.
- Works on the 433.92 Mhz RF band.
- Receiving device can be sync to a maximum of 10 hand held remotes.
- Hand held remote can be synced to unlimited receiving devices of the same model.
In stock
Specifications
Electrical Information
Dimmable
By Remote Controller
Input Voltage
12/24VDC
Recommended Power Limit
144W/12V , 288W/24V.
Output Voltage
12/24VDC, Same as Input voltage
Current Per Channel
4A
General Characteristics
Length
8"
Width
5"
Height
2"
IP Rating
IP20
Warranty
2 Years
Finish
White
Brand
SKYDANCE
Installation Related Information
Connection
Screw Terminal Block Connector
Mounting Type
Screw-Ready Brackets on Edges
Control Unit Information
Remote Controller
No Included, Sold Separately
Channels
3 Channels (RGB)
Controllable By
Remote Control (not Included)
Control Distance
30 Meters, 100 feet
Certifications
CE Compliance
Yes
Rohs Compliance
Yes
