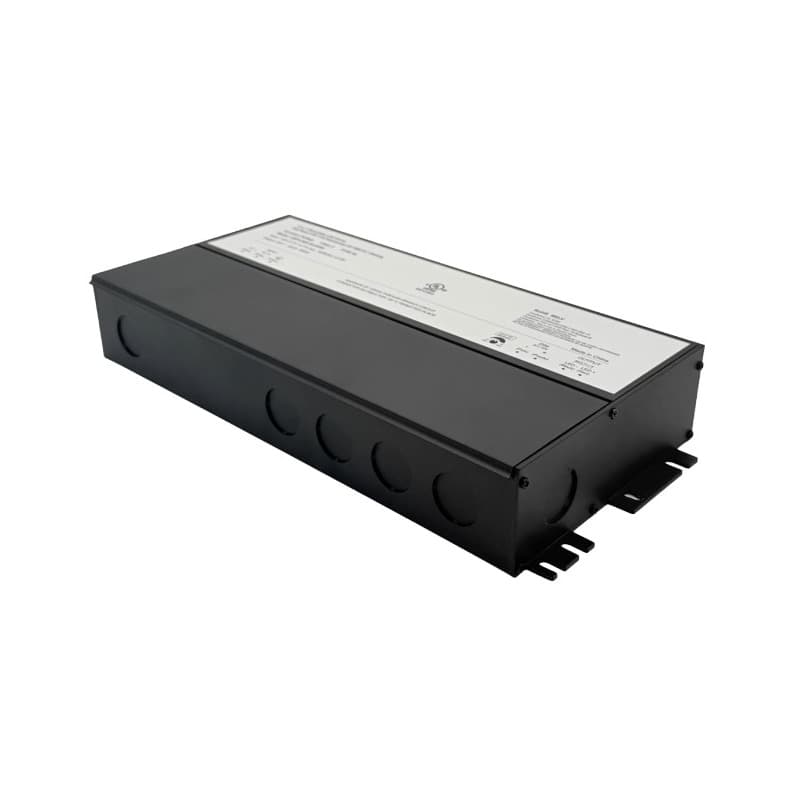

EPS-JNA-300-24 series is a 300W 24V AC/DC LED driver featuring constant voltage design. It operates from 100VAC to 277VAC and can withstand 300VAC surge input for 5 seconds. In addition to high efficiency up to 83%, with a fan-less design the EPS-JNA-300-24 can operate under -30°C ~ +70°C under free air convection. The design of a fully isolated plastic case housing and IP64 ingress protection level allows this series to fit both indoor and outdoor applications. EPS-JB-ND-300W-24V is not recommended for dimming capabilities under high voltage dimmers, only dimmable through low voltage controller.
EPS Constant Voltage 300W Power Supply, 24VDC
$166.99
- It operates on 100-277VAC.
- 24VDC Output Voltage.
- Maximum power rated at 300W.
- Suitable for Damp and Wet locations.
- UL Listed.
- Fully Isolated Aluminum Case.
Compatible Products:
24V LED Strips
In stock
Specifications
Electrical Information
Dimmable
No
Input Voltage
100-277VAC
Recommended Power Limit
270W
Output Voltage
24VDC
Rated Power
300W
General Characteristics
Length
11"
Width
4-1/8"
Height
1-13/16"
Finish
Black
IP Rating
IP64
Suitable For Damp Location
Yes
Warranty
5 Years
Suitable For Wet Location
Yes
Installation Related Information
Connection
AC/DC Wires
Mounting Type
Screw-in Hanger
Certifications
CE Compliance
Yes
Rohs Compliance
No
UL Listed
Yes
