EPS-JDA2-384-24 series is a 384W 24V AC/DC LED driver featuring dimming capabilities. It operates from 100VAC to 277VAC and can withstand 300VAC surge input for 5 seconds. In addition to high efficiency up to 95%, with a fan-less design the EPS-JDA2-384-24 can operate under -30°C ~ +70°C under free air convection. The design of a fully isolated plastic case housing and IP64 ingress protection level allows this series to fit both indoor and outdoor applications.

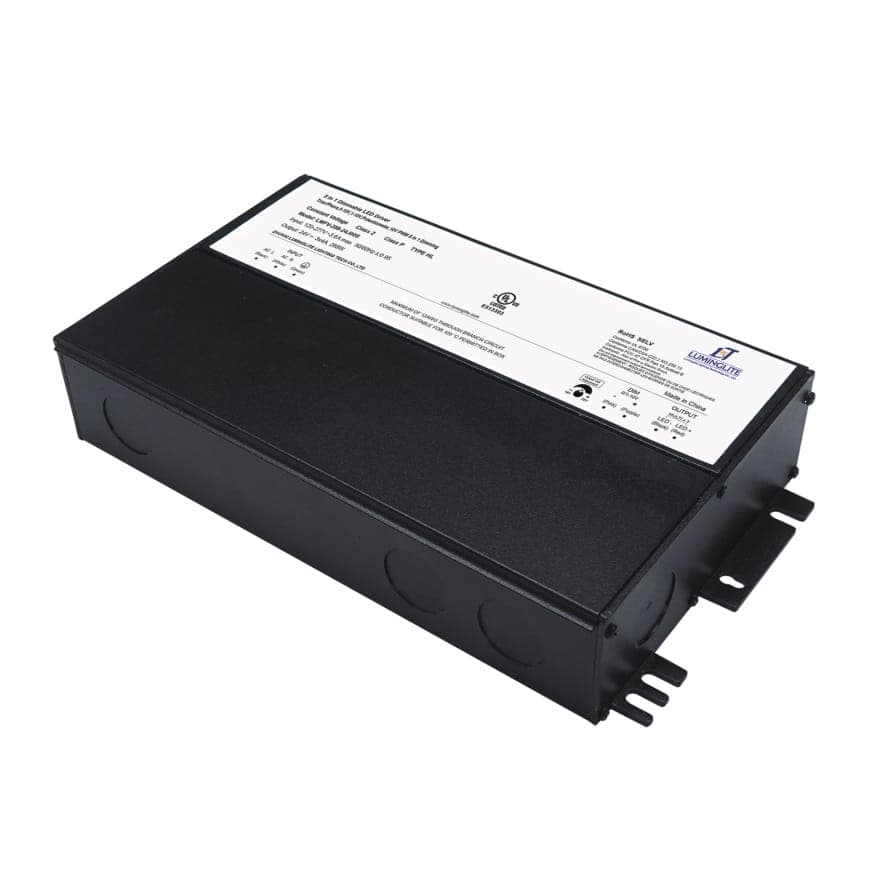

EPS 5-in-1 Dimmable 384W Power Supply, 24VDC
$265.25
- It operates on 100-277VAC.
- 24VDC Output Voltage.
- Maximum power rated at 384W.
- 4 X 96W Class 2 Output (total of 384W).
- Suitable for Damp and Wet locations.
- UL Listed.
- Dimming compatibility:
Forward phase (leading edge) MLV.
Reverse phase (trailing edge) ELV.
TRIAC.
LED.
0-10V.
1-10V.
Potentiometer.
10V PWM. - Fully Isolated Aluminum Case.
Compatible Products:
24V LED Strips
Out of stock
Specifications
Electrical Information
Dimmable
Yes
Input Voltage
100-277VAC
Recommended Power Limit
360W
Output Voltage
24VDC
Rated Power
384W
General Characteristics
Length
11"
Width
4-1/8"
Height
1-13/16"
Finish
Black
IP Rating
IP64
Suitable For Damp Location
Yes
Warranty
5 Years
Suitable For Wet Location
Yes
Installation Related Information
Connection
AC/DC Wires
Mounting Type
Screw-in Hanger
Certifications
CE Compliance
Yes
Rohs Compliance
No
UL Listed
Yes
