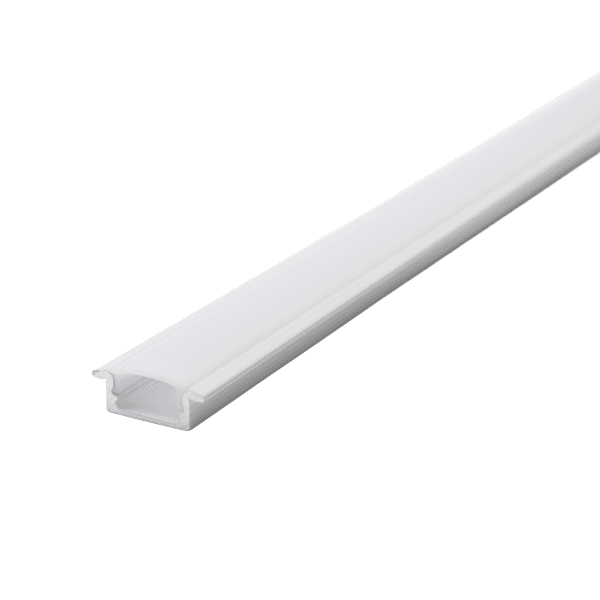

8-feet Flanged Aluminum Channel White – AR1
$25.75
- Interior use.
- For Recessed mounted applications.
- It can fit any LED strips lights with a width of 8mm, 10mm and 12 mm.
- Easy installation.
- It can be resized / cut to adapt to any length requirements.
- It comes with 2 pair of endcaps (1 blank and 1 with cable input), and 4 mounting brackets.
- *To ensure that our products arrive at your doorstep in the best possible condition, we have implemented a minimum order quantity of 4 units.
Related linear lighting components frequently needed:
LED Strips
Power Supplies
In stock
Standard Straight Shaped with Flanges
This Aluminum Channel has a standard rectangular shape with flanges on the side. It can fit any LED strip from 5mm all the way up to 12mm.Â
Preferred Use
This Aluminum Channel is best used on embedded applications or installations. With a standard sized profile and flanges on the sides, its preferred use is on furniture to achieve that almost seamless look between the strip and where it’s installed.
Versatile Length
Our Aluminum Channels measure approximately 94.5″ inches. This measurement is versatile enough to cover the vast majority of measurements on most areas. However, if needed, our Aluminum Channels can be resized by simply cutting them. Need an exact measurement? No worries! We can do that for you. Just ask about our custom size services.
Exceptional Warranty
We stand by our vision of providing excellent products and services so that you can create all of your projects without worrying about the future. That’s why these Aluminum Channels are covered by our exceptional 2 Year Warranty protection.
Made of Aluminum AA 6063
AA 6063 is an aluminium alloy, with magnesium and silicon as the alloying elements. It has good mechanical properties and is heat treatable and weldable.
AA 6063 is the most common alloy used for aluminium extrusion. It allows complex shapes to be formed with very smooth surfaces fit for anodizing and so is popular for visible architectural applications such as window frames, door frames, roofs, and sign frames.
PC Opal Cover
Our Aluminum Channels also include a Polycarbonate Opal Cover. This particular cover is similar to a “frosted” or “milky” finish. By using this particular finish on your channels, we can ensure that our diffuser will smooth the light emitted from the LED Strip so that you don’t see those bothersome dots.
| Weight | 1 lbs |
|---|---|
| Dimensions | 94.5 × 0.69 × 0.38 in |
| Brand | Ecopowertech |
| Beam Angle | 120° |
| CE Compliance | Yes |
| Lighting Cover | Frosted |
| Length | 94.5″ |
| Width | 0.91″ |
| Height | 0.35″ |
| Finish | Silver |
| IP Rating | IP20 |
| Material | Aluminum 6060 |
| External Width | 0.91″ |
| Internal Width | 0.4″ |
| External Height | 0.35″ |
| Recessed Depth | 0.3″ |
| Mounting Type | Mouting Bracket |
| Rohs Compliance | Yes |
| Suitable For Damp Location | No |
| Suitable For Wet Location | No |
| Warranty | 2 Years |
| Strip Width | 12mm, 10mm, 8mm |
| Maximum LED Lines | 1 line of 12mm strip or smaller |
